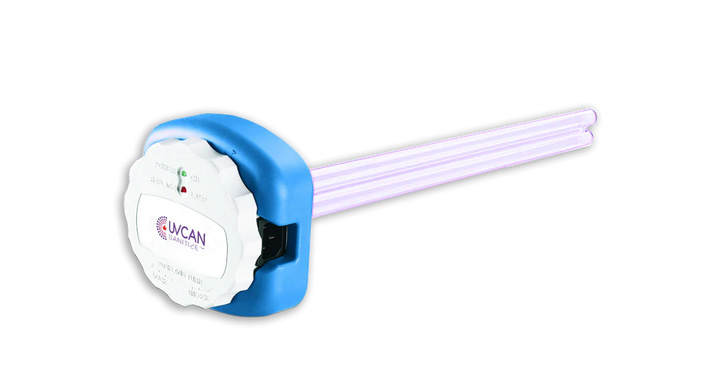

With UV CAN’s Dianthus In-Duct UV-C Disinfection Light, you can achieve 24/7 air sanitization in any occupied indoor space, providing an unprecedented level of confidence to the people that matter most. Simply connect and forget.
Use effectively and safely enclosed in your duct system to freshen your indoor air. Unplug before attempting to access, replace, or clean.
⚠*Please note: WARNING – UV radiation emitted from this device. Unintended use of the device, or damage to the housing, may result in exposure to ultraviolet radiation. Avoid exposing skin and eyes to ultraviolet radiation; may cause irritation. Read the label and any operating manual before using: proper use of UVC light kills up to 99.9% of viruses, bacteria, mold, and spores.
- 36W lamps provide 254 nm wavelength UV-C disinfection
- No ozone production from UV lamps
- Indicator light to show when the lamp is on
- Indicator light to show when the lamp needs a replacement
- UL & CSA certified
- Clean the air you breathe: Kills germs that cause colds, flus, and other airborne diseases
- Removes need for chemical disinfecting which can be harmful to those with allergies or asthma symptoms
- Eliminates odours by killing mold and mildew in your HVAC system
- Easy to include in your disinfection routine: Plugs into a standard electrical socket
- Disinfects the air of large rooms and more: effective for spaces up to 3500 ft2

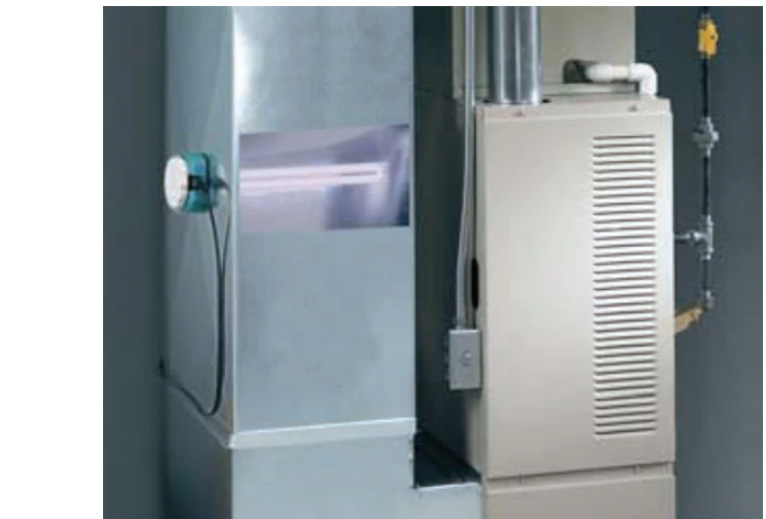

- Engineered with safety in mind: No fear of UV exposure as it is protected within your air duct
- Compact & lightweight design: Makes installation quick and easy
Dianthus is suitable for unoccupied and occupied spaces such as:
| Clinic | Office |
| Home |
The kit includes:
- Mounting plate, lamp holder, UV-C bulb, screws, 6 ft (180 cm) power cord, hole saw to cut metal, foam tape already attached
- Tools required: power drill and screwdriver
STEP 1: Cut hole and install mounting plate to duct work
STEP 2: Attach UV lamp to the lamp holder
STEP 3: Lock into the mounting plate and connect the power cord
| Parameter | Info |
|---|---|
| Power(W) | 36W |
| Input Voltage | 110VAC, 60Hz |
| Lamp | LP UV Lamp 254nm |
| Dimension of the Lamp | 1.5″ x 0.5″ x 15″ |
| Dimension of the Base | 5.1″ x 5.1″ x 2″ |
| Weight | 450g; 1lb |
| Effective Area | 3500 Sq. Ft. |
